FEELWORLD LUT7S 7″ 3D LUT 4K HDMI and SDI LED Monitor

154.0 Inc Vat

Ideal Filming Crew, Director, AC and DP Monitor

Easy monitoring and focus, flexible mobility on set

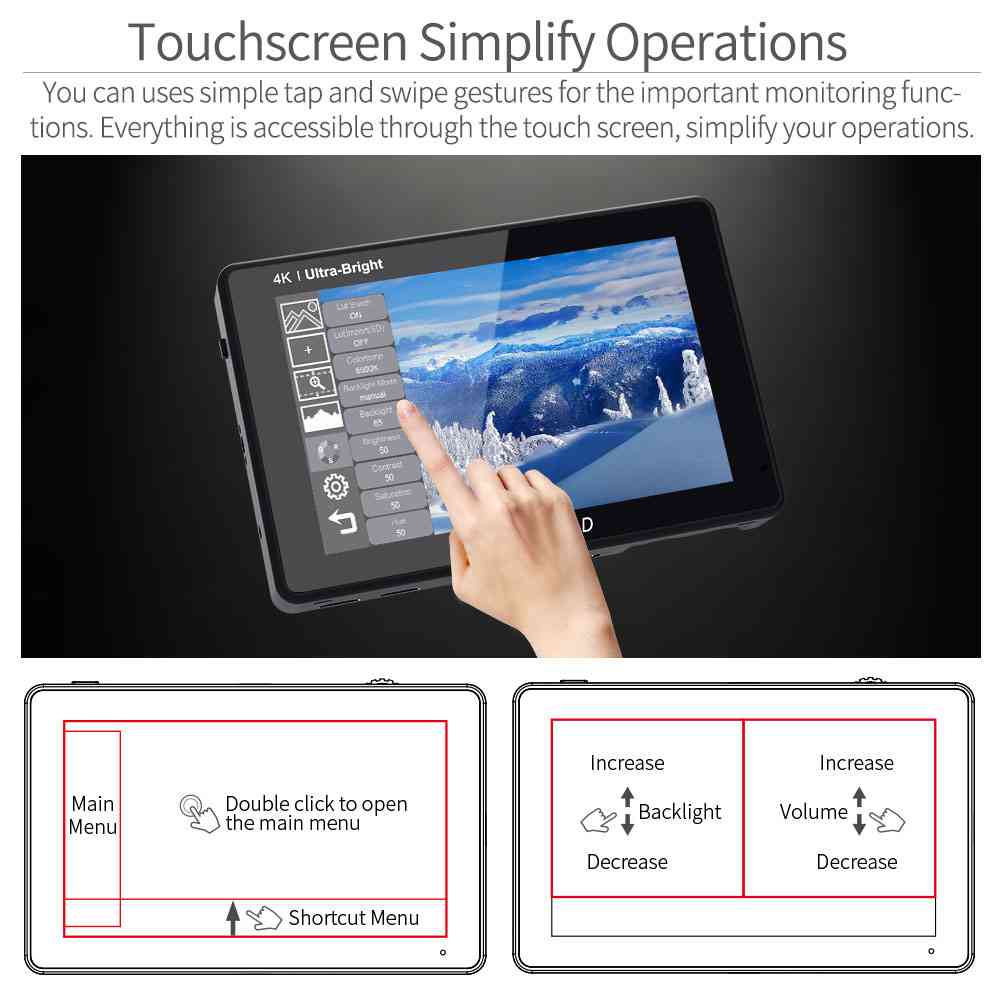

The LUT7S PRO equips filmmakers with the benefits of a large on-camera display without making the camera set up feel cumbersome. FEELWORLD LUT7S PRO is packed with high end monitoring features in a small, lightweight package that can be connected to virtually any camera. The front features a large high resolution, daylight viewable LCD touchscreen, there are video connections on the bottom and SD card slot on the side. There are an F970 battery plate and an install/ like wireless transmitter, LED light and others which equipped with Sony F970 battery plate. The outer frame features standard ¼” mount points on the bottom, left and right for attaching it to cameras and rigs. This design detail makes the LUT7S PRO easy to attach to a camera and easy to share with a team member or client on set.

Easy to See, Easy to Power

The ideal choice for the director

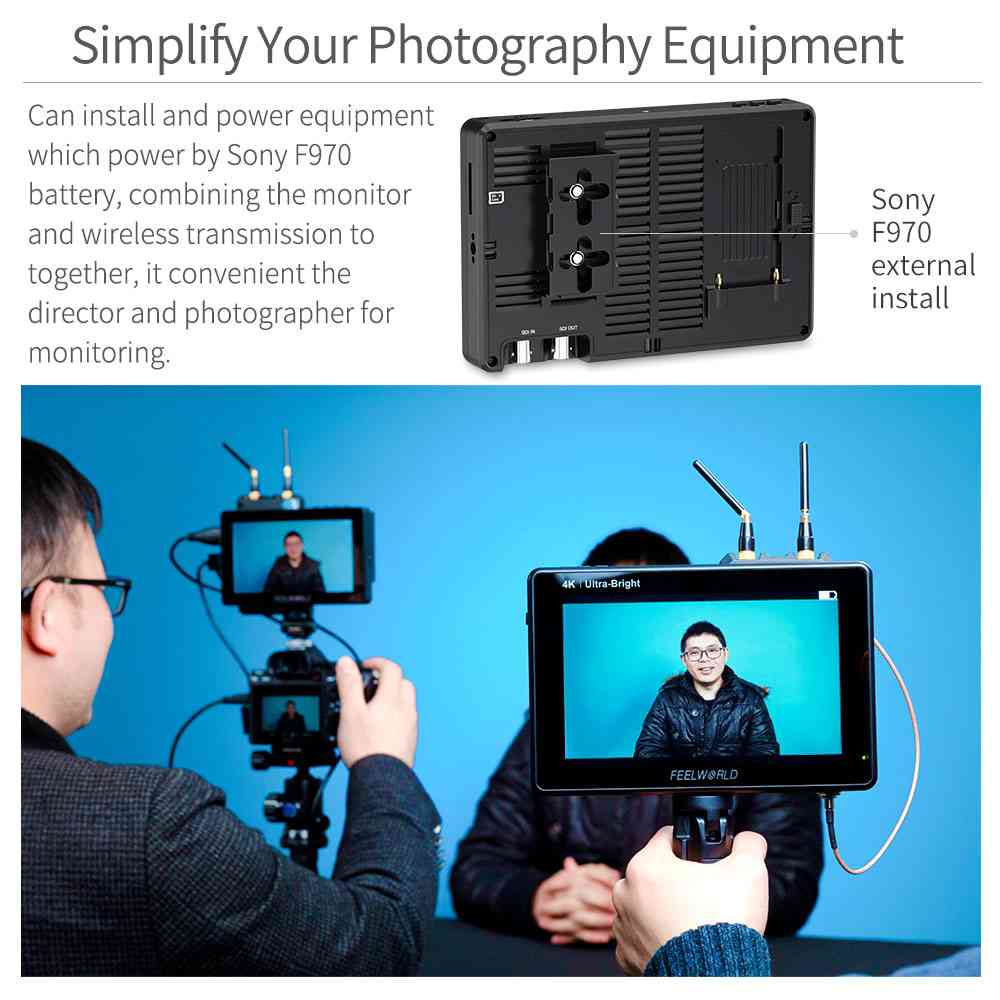

Many times when you want to use wireless video transmission, you always do not know where to put it on the monitor. With the F970 external install and power kit, it not only solves this problem, but also can be powered it by Sony F970 battery. The most important is that make to combining the monitor and wireless transmission to together, it convenient the director and photographer for monitoring, and improve the efficiency of the film crew shooting.

High Resolution, More Detail In Field Shooting

Viewing clearly and capture every detail

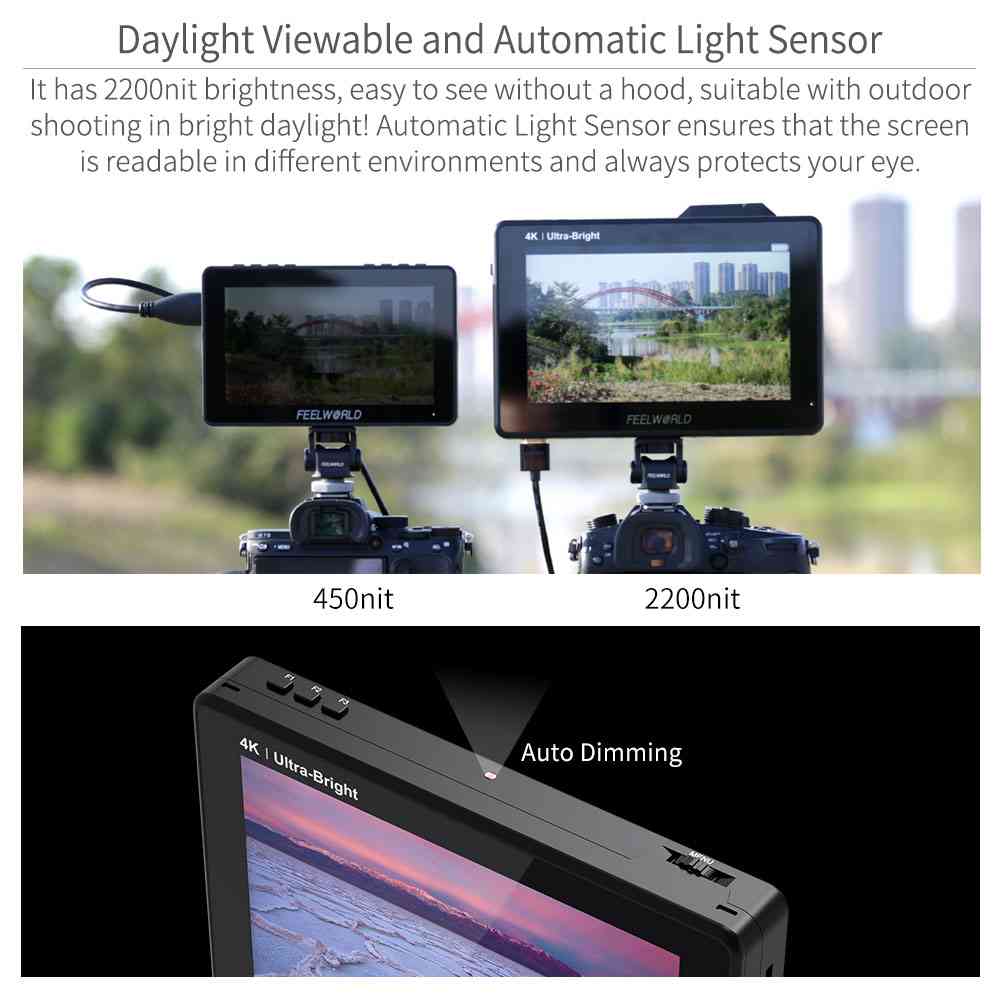

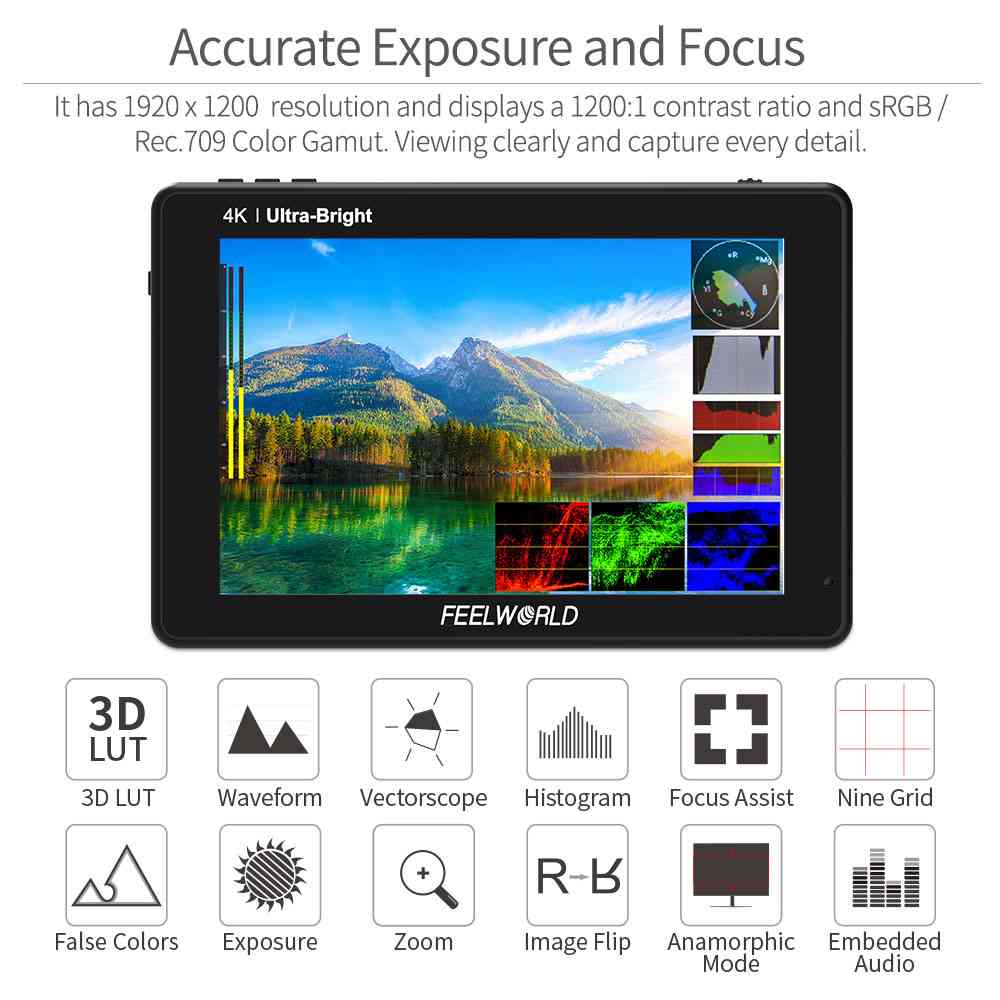

The FEELWORLD LUT7S PRO enables clear and precise field monitoring and image analysis during daytime shoots. It displays your stills and monitoring content at superior color fidelity and 1920 x 1200 maximum resolution on a 7-inch display. The panel is made of optically bonded glass with an anti-reflective coating, which allows comfortable daytime field monitoring. But what really sets it apart is its light-emitting diode (LED) backlighting, which outputs a brightness of 2200 nits and displays a 1200:1 contrast ratio and sRGB / Rec.709 Color Gamut, resulting in exceptional screen clarity even in intense lighting conditions. With the monitor displaying your content at 323 pixels per inch (PPI), you can shoot in broad daylight with confidence and refine your content on the spot. The wide 160º viewing angle makes it easy for multiple members of the crew to watch it at the same time.



Specifications

Display Spec.

  • Screen Size: 7″ IPS
  • Resolution: 1920×1200 pixels
  • Pixel Pitch: 0.07875 (H) x 0.07875 (W) (mm)
  • Aspect Ratio: 16:10
  • Brightness: 2200cd/m² (Light Sensor)
  • Contrast Ratio: 1200:1
  • Backlight: LED
  • Viewing Angle: 80°/80°(L/R) 80°/80°(U/D)

Input/ Output

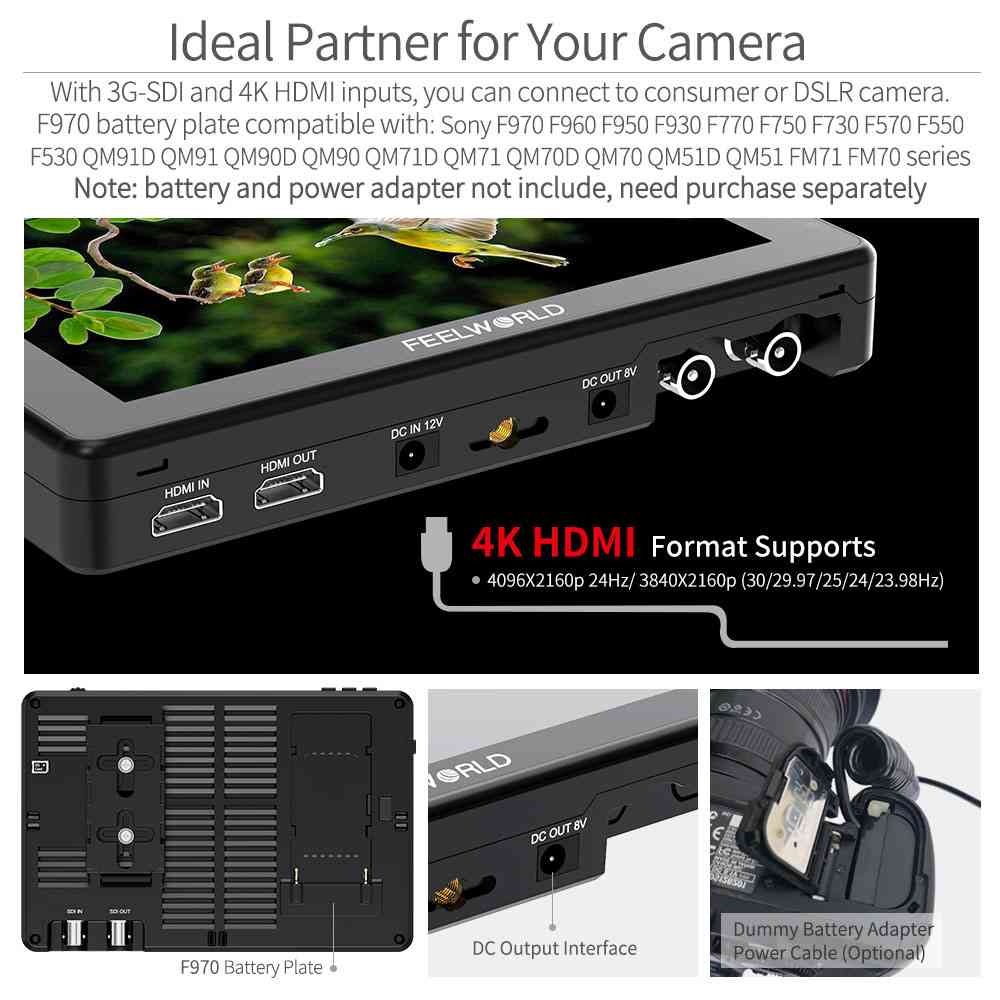

  • Input: 1 X 4K HDMI, 1 X 3G-SDI
  • Output: 1X 4K HDMI, 1 X 3G-SDI, DC Output ( Barrel (3.5mm outer, 1.1mm inner) barrel output for powering cameras via camera specific adaptor)
  • Audio:  3.5mm Stereo Headphone
  • HDMI Input/ Output Support Format:
    480i/576i/480p/576p
    1080i (60/59.94/50)
    720p (60/59.94/50/30/29.97/25/24/23.98)
    1080p (60/59.94/50/30/29.97/25/24/23.98)
    4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)

General

  • Input Voltage: DC7~24V
  • Consumption: ≤16W
  • Working Temperature: -20°C~50°C
  • Storage Temperature: -30°C~60°C
  • Install Way: 1/4″-20 Thread Socket (Left, Right, Bottom)
  • Unit Size: 190Lx126Hx27D (mm)
  • Battery Plate:  F970 Battery Plate
  • Compatible Battery: Sony F970, F960, F950,F930, F770, F750, F730, F570, F550, F530, QM91D, QM91, QM90D, QM90, QM71D, QM71, QM70D, QM70, QM51D, QM51, FM71, FM70 series.  Because the FEELWORLD LUT7 PRO monitor is the ultra bright, we recommend use Sony F970 battery,  F970 batteries (7.4V 6600mah), the monitor can working about 3 hours.
  • (Note battery not include, need purchase separate)
