FEELWORLD LIVEPRO L1 Multi-Format Video Mixer 4 x HDMI inputs Multi Camera Production Real time Live Streaming
BD154.0 Inc Vat

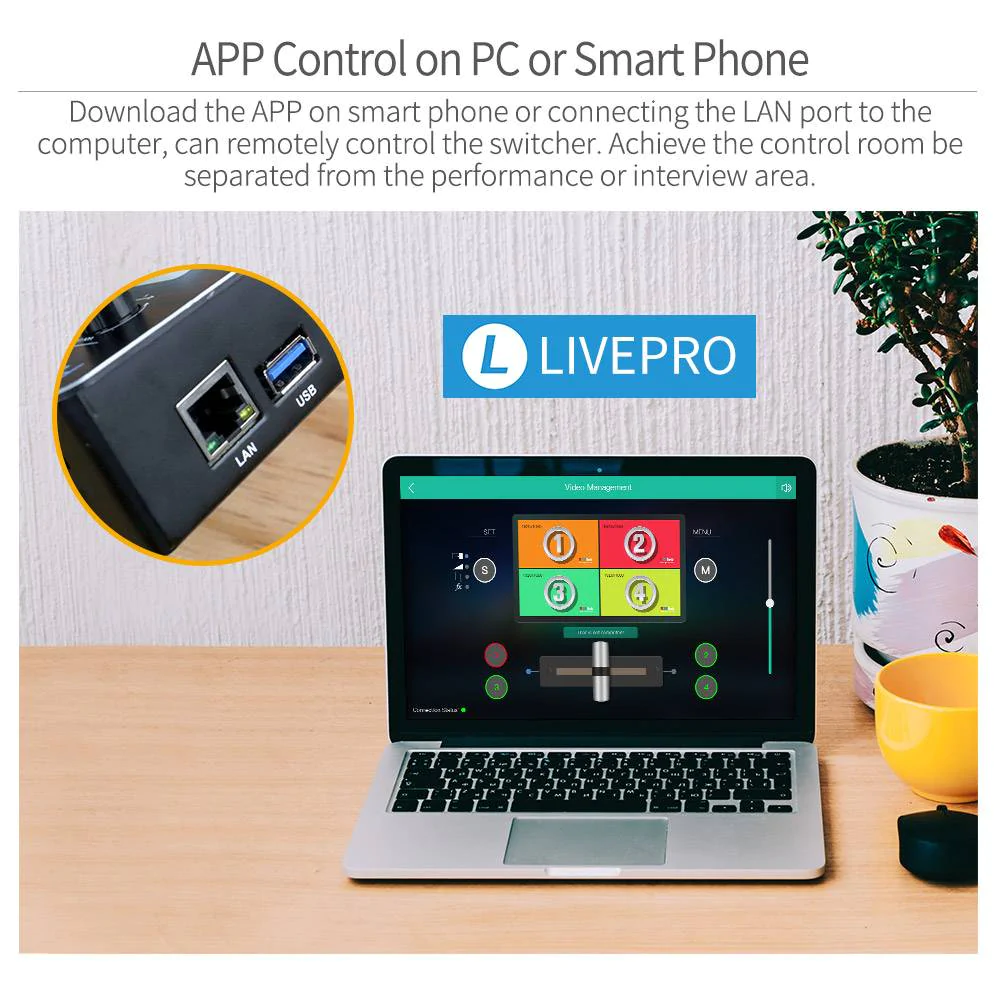

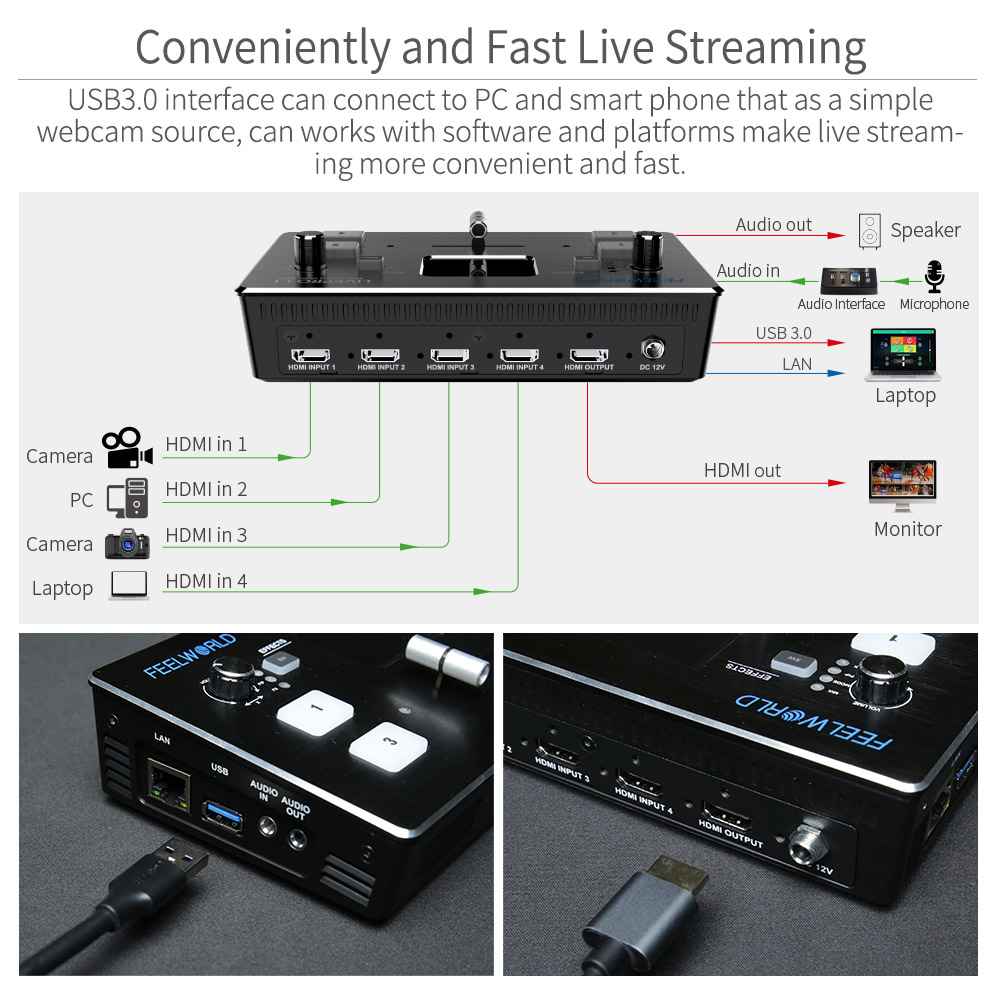

[Multi Camera Live Production] FEELWORLD LIVEPRO L1 with 4 CH HDMI inputs and 1 HDMI output, all of them support 1080p. For live streaming, there is a USB3.0 interface. And plus, the LAN port for controlling and upgrading; for audio, it has 2 interfaces, one for input, and the other one for output. All of these make it easy to create professional multi-camera productions.

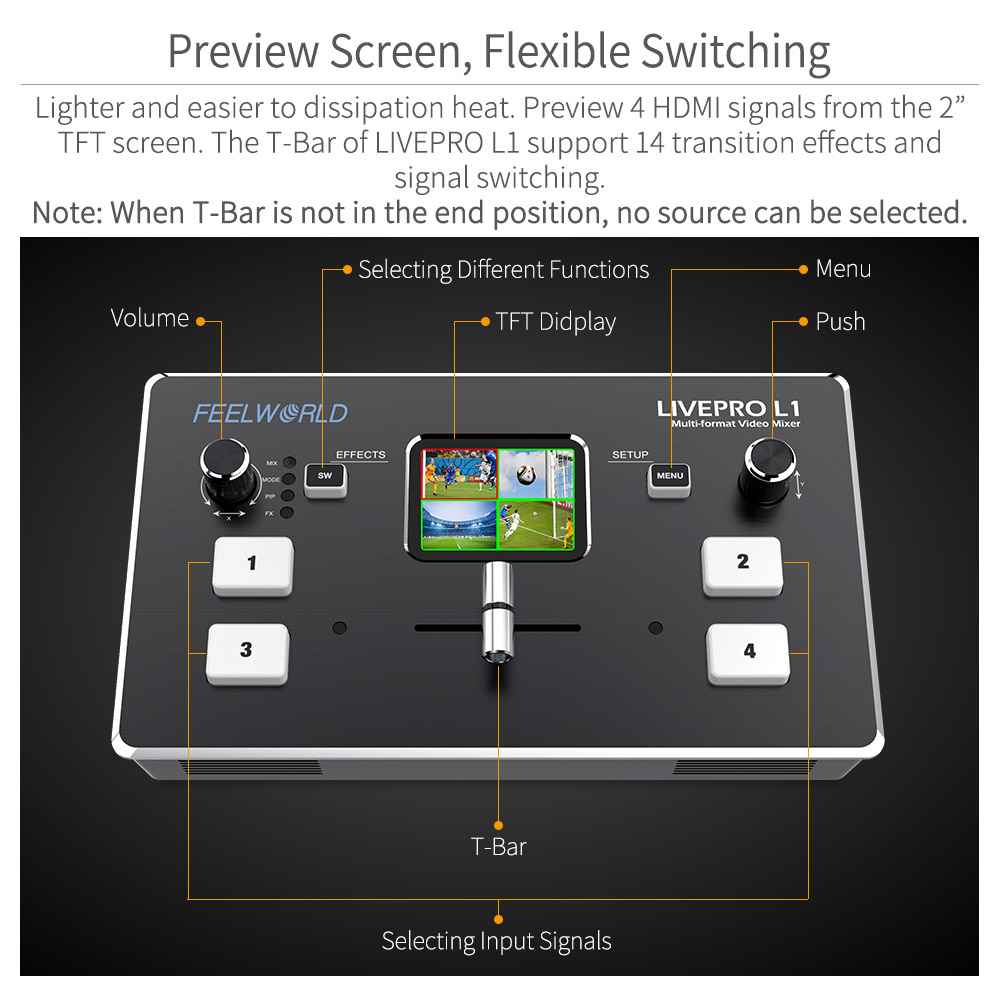

[Exquisite and Flexible Control Panel] The 4 buttons are for selecting input signals, green flashing means the signal has been selected, then switch the T-Bar, the selected signal will be displayed on the screen seamlessly, the green button changed to red after switched. The SW button is for selecting different functions such as mixing, scaling, transition time setting and the other functions. The left knob is for voice volume controlling, the right knob is for menu setting as well.

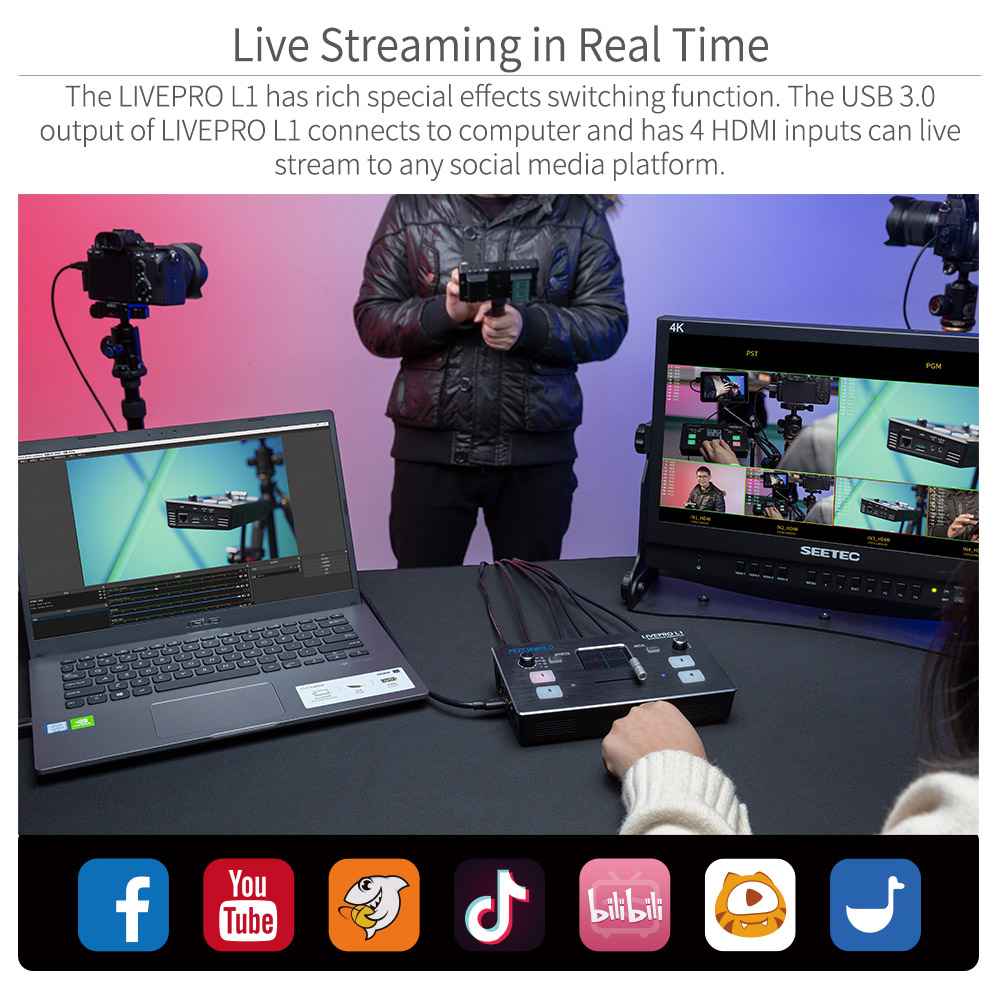

[Faster Video Production, Plus Live Streaming] The USB 3.0 output of LIVEPRO L1 connects to any computer and looks like a built in webcam, so all streaming software for social media platforms work! With up to 4 HDMI inputs you can set up multiple camera angles such as wide shots along with independent close ups of each person in the performance.

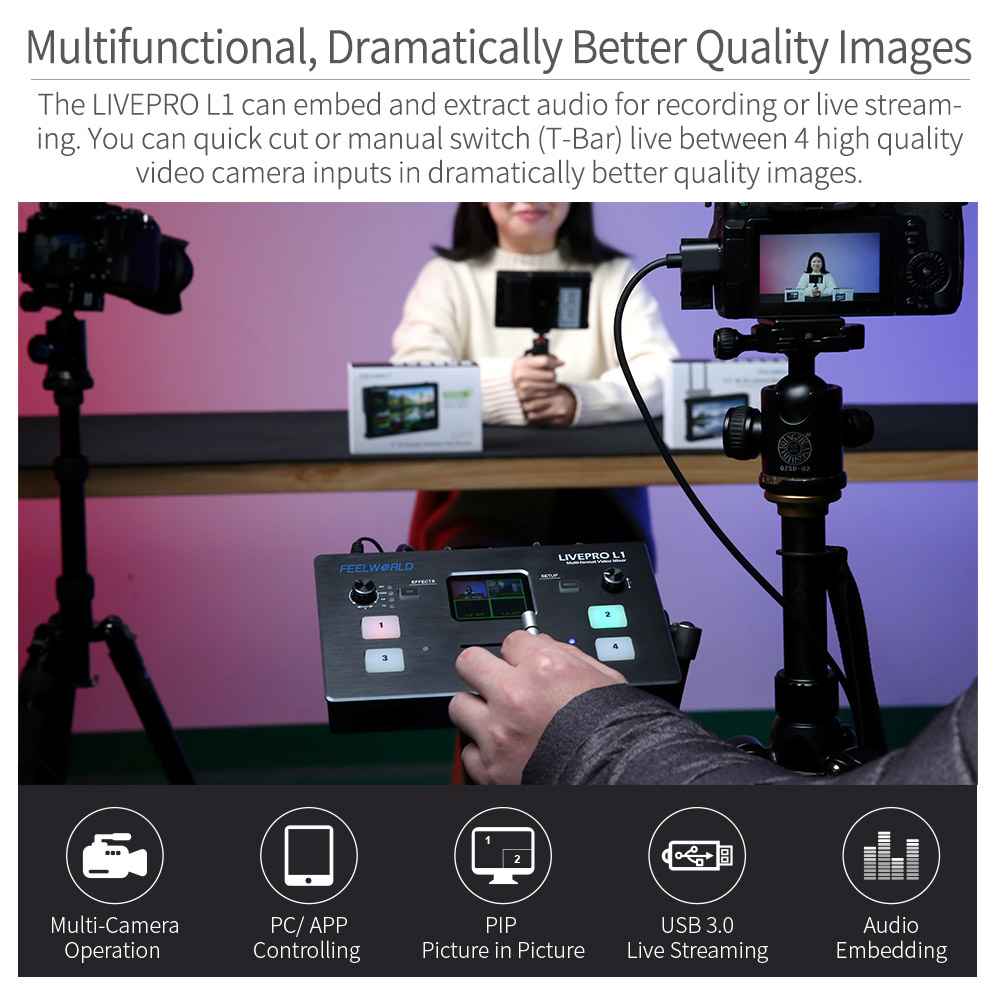

[Bothe Embed and De – embed] The LIVEPRO L1 not only lets you embed analog audio into an HDMI signal for recording or live streaming, but you can also extract the audio from an HDMI signal to send over to a larger dedicated audio mixer.
[6 Picture PVW, PIP] When the switcher is connected with an external expansion screen, it can preview real-time monitoring on 6 pictures, including PGM, PST and 4-channel HDMI input signals, and the audio column is displayed. Plus, you can set 9 layouts for PIP (Picture in Picture) mode. This is very useful for large-scale multi stand field production.
2”TFT display on board to live preview 4 inputs
Auto cut and manual switch (T-Bar)
USB capture video complying with UVC for live streaming
Audio offers embedded or external source to select
Support switch between 6-picture PVW and PGM to HDMI out
