FEELWORLD W1000S WIRELESS VIDEO TRANSMISSION SYSTEM (LAIZESKE)

BD250.3 Inc Vat

FEELWORLD W1000S (1000FT) HDMI SDI Wireless Video Transmission System for Director and Photographer

Features:

  • Dual HDMI + SDI signal interfaces, meet your different needs
  • More than 1000ft transmission range with 0.08S ultra-low latency
  • Up to 1080P@60Hz, provide high quality image
  • Wireless full-duplex talkback, real-time intercom between the director  and the photographer
  • The transmitter can be switched as a receiver at will
  • One TX to multiple RX, monitoring for everyone on set
  • Real-time APP monitoring for Android/iOS system
  • 13 frequency channels, AUTO channel scan

Specifications

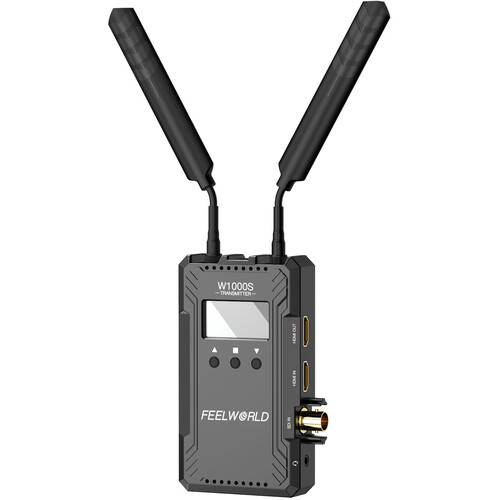

Transmitter

Screen  OLED
 Interface  1 * SDI input

1 * HDMI input

1* HDMI output

2 *Antenna port (RP-SMA Male)

DC power input

3.5mm headphone jack

Type-C

 Power Supply Way/Voltage  F970 battery

Type-C: 5V/1.5A

DC adapter: 6-16V

 Power Consumption  <7.5W
 HDMI Format  480P60, 576P60

720P60/59.94/50

1080P60/59.94/50/30/29.97/25/24/23.98

1080I60/59.94/50

HDMI Type A

 SDI Format  480P60, 576P60

720P60/59.94/50

1080P60/59.94/50/30/29.97/25/24/23.98

1080I60/59.94/50

1*BNC

 Frequency  5.1-5.9GHz
 Modulation Mode  OFDM
 Transmission Power  Maximum 17dBm
 Band Width  20MHZ
 Occupied Bandwidth  20/40MHz
 Latency  Min 0.08S
 Intercom Frequency Response Range  20Hz~20KHz
 Operating Temperature  0℃ ~ 40℃
 Storage Temperature  -20℃ ~ 60℃

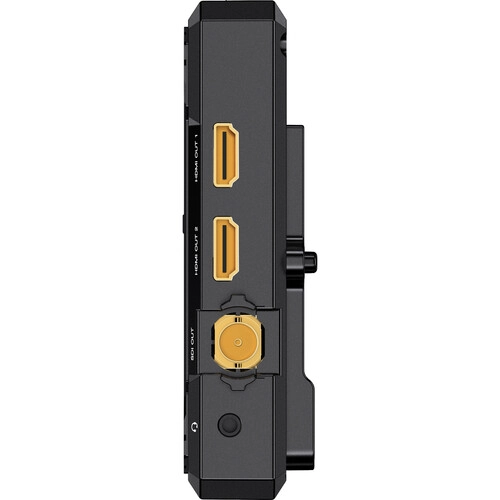

Receiver

 Screen  OLED
 Interface  1 * SDI input

2* HDMI output

2 *Antenna port (RP-SMA Male)

DC power input

3.5mm headphone jack

Type-C

 Power Supply Way/Voltage  F970 battery

Type-C: 5V/1.5A

DC adapter: 6-16V

 Power Consumption  <6.5W
 HDMI Format  480P60, 576P60 720P60/59.94/50

1080P60/59.94/50/30/29.97/25/24/23.98

1080I60/59.94/50

HDMI Type A

 SDI Format  480P60, 576P60 720P60/59.94/50

1080P60/59.94/50/30/29.97/25/24/23.98

1080I60/59.94/50

1*BNC

 Frequency  5.1-5.9GHz
 Modulation Mode  OFDM
 Receiving Sensitivity  -87dBm
 Band Width  20MHZ
 Occupied Bandwidth  20/40MHz
 Latency  Min 0.08S
 Intercom Frequency Response Range  20Hz~20KHz
 Operating Temperature  0℃ ~ 40℃
 Storage Temperature  -20℃ ~ 60℃

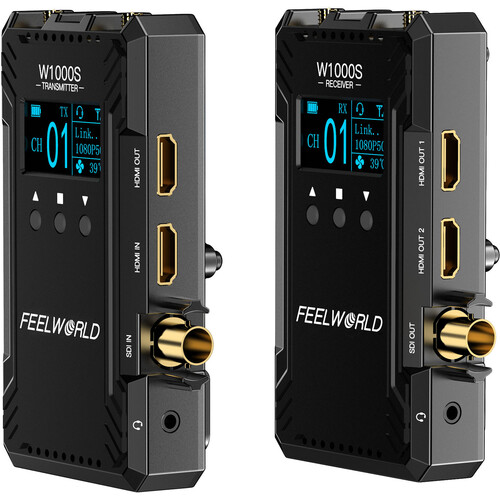

The FeelWorld W1000S transmitter/receiver set is a real-time wireless video transmission system with an integrated intercom feature that allows communication between users on set. The system supports up to 1080p60 SDI/HDMI transmission up to 1000′ with a low latency of 0.08 seconds. The transmitter has a 3G-SDI input and HDMI input and output. The receiver offers a 3G-SDI output and dual HDMI outputs.

FEELWORLD W1000S WIRELESS VIDEO TRANSMISSION SYSTEM (LAIZESKE)

BD250.3 Inc Vat
