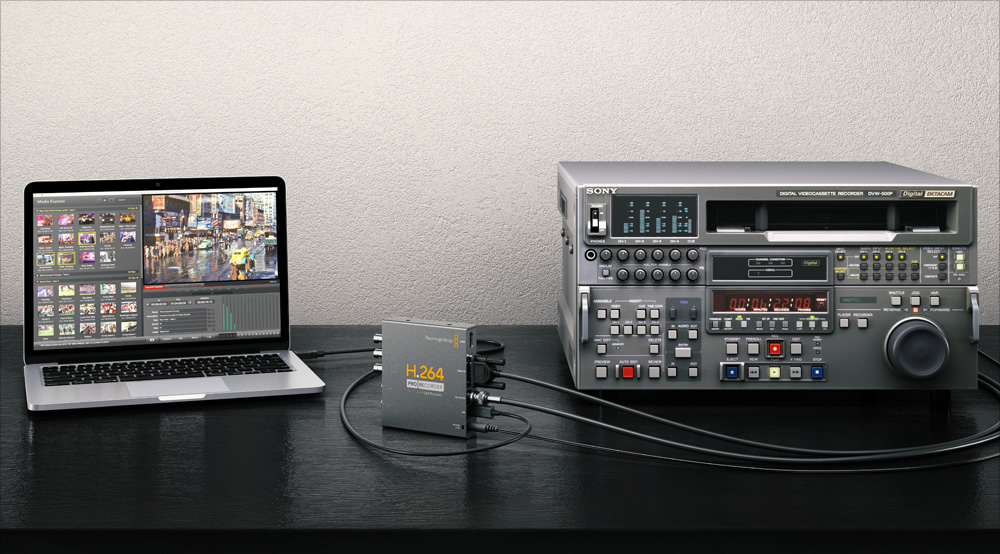

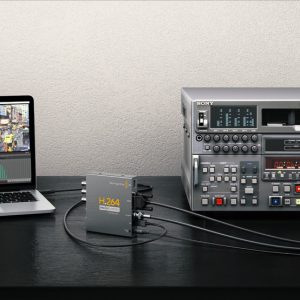

Encode to digital H.264 files in real time from professional SDI, HDMI, analog component, S-video and composite video equipment! Get the highest quality 4:2:2 video capture from all popular SD/HD video formats. Connect video cameras and VTRs, including HDCAM, Digital Betacam, Betacam SP, DVD players and much more. H.264 Pro Recorder includes Media Express software for Mac OS X and Windows, which lets you preview and set the video quality of encoded files.
Standards
SD Video Formats
525i59.94 NTSC, 625i50 PAL
HD Video Formats
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
SDI Compliance
SMPTE 259M and SMPTE 292.
Audio Sampling
Television standard sample rate of 48 kHz and 24 bit.
Video Sampling
4:2:2 YUV
SDI Color Precision
10-bit
Color Space
REC 601, REC 709
HDMI Color Precision
10-bit
SDI Rates
270 Mb, 1.5G-SDI, 3G-SDI
Copy Protection
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Processing
Encoding
Hardware based real time H.264 encoder supports multiple profiles for small, portable video devices through to full resolution HDTV.
Realtime Scaling
Capture at full HD or SD resolution, or use direct resize in realtime to scale and encode for the intended playback device, such as iPhone, iPad or iPod.
Software
Software Included
Media Express, Blackmagic System Preferences and Blackmagic driver on Mac OS X™. Media Express, Blackmagic Control Panel and Blackmagic driver on Windows™.
