“Mic Input 1 (balanced XLR):
FREQUENCY RESPONSE 20 Hz – 20 kHz (+0.1 dB)
DYNAMIC RANGE 104 dB (A-weighted)
SIGNAL-TO-NOISE RATIO 104 dB (+1.0 dBu, A-weighted)
THD+N 0.003%
PREAMP EIN -128 dBu (max gain, 150 Ω source, A-weighted)
MAX INPUT LEVEL +1.5 dBu
GAIN RANGE 55 dB
Line Input 1 (balanced 1/4″” [6.35 mm] TRS):
FREQUENCY RESPONSE 20 Hz – 20 kHz (+0.05 dB)
SIGNAL-TO-NOISE RATIO 101 dB (1 kHz, +4 dBu, A-weighted)
THD+N 0.003%
MAX INPUT LEVEL 16 dBu
GAIN RANGE 55 dB
Inst Input 2 (unbalanced 1/4″” [6.35 mm] TS):
FREQUENCY RESPONSE 20 Hz – 20 kHz (+0.05 dB)
DYNAMIC RANGE 100 dB (A-weighted)
SIGNAL-TO-NOISE RATIO 102 dB (+ 4 dBu, A-weighted)
THD+N 0.004%
MAX INPUT LEVEL 6 dBu
INPUT IMPEDANCE 1 MΩ
GAIN RANGE 24 dB
Main Outputs, L and R (balanced, differential 1/4″” [6.35 mm] TRS):
FREQUENCY RESPONSE 20 Hz – 20 kHz (+0.06 dB)
DYNAMIC RANGE / SIGNAL-TO-NOISE RATIO 102 dB (A-weighted)
THD+N 0.005%
MAX OUTPUT LEVEL +7 dBu (1 kHz, -1 dBFS)
Headphone Output (impedance-balanced 1/4” [6.35 mm] TRS):
THD+N 0.005%
OUTPUT IMPEDANCE 10 Ω
General:
POWER USB-bus-powered
DIMENSIONS (WIDTH X DEPTH X HEIGHT) 8.0” x 6.0” x 2.76” (20.42 cm x 15.24 cm x 7.0 cm)
WEIGHT 2.0 lbs. 0.9 kg”

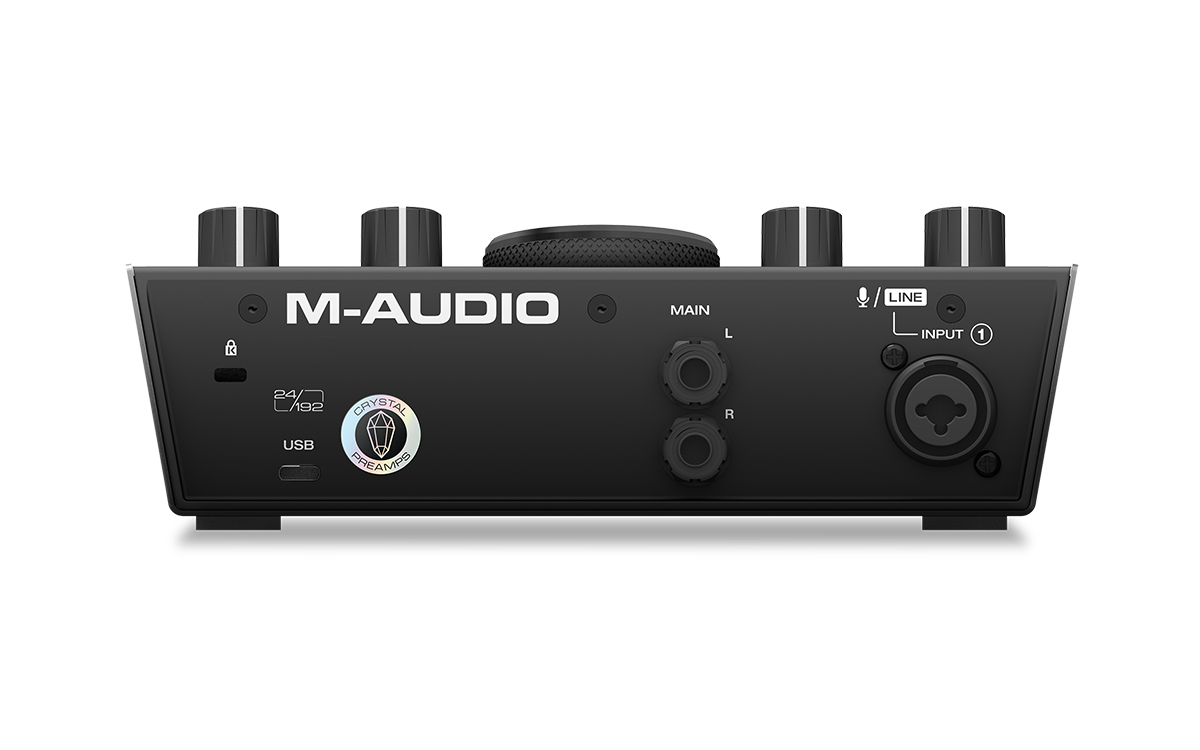

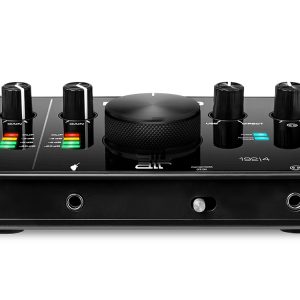

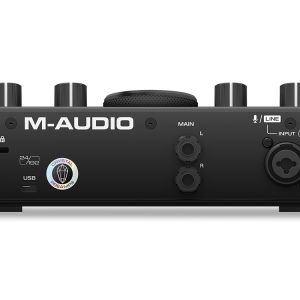

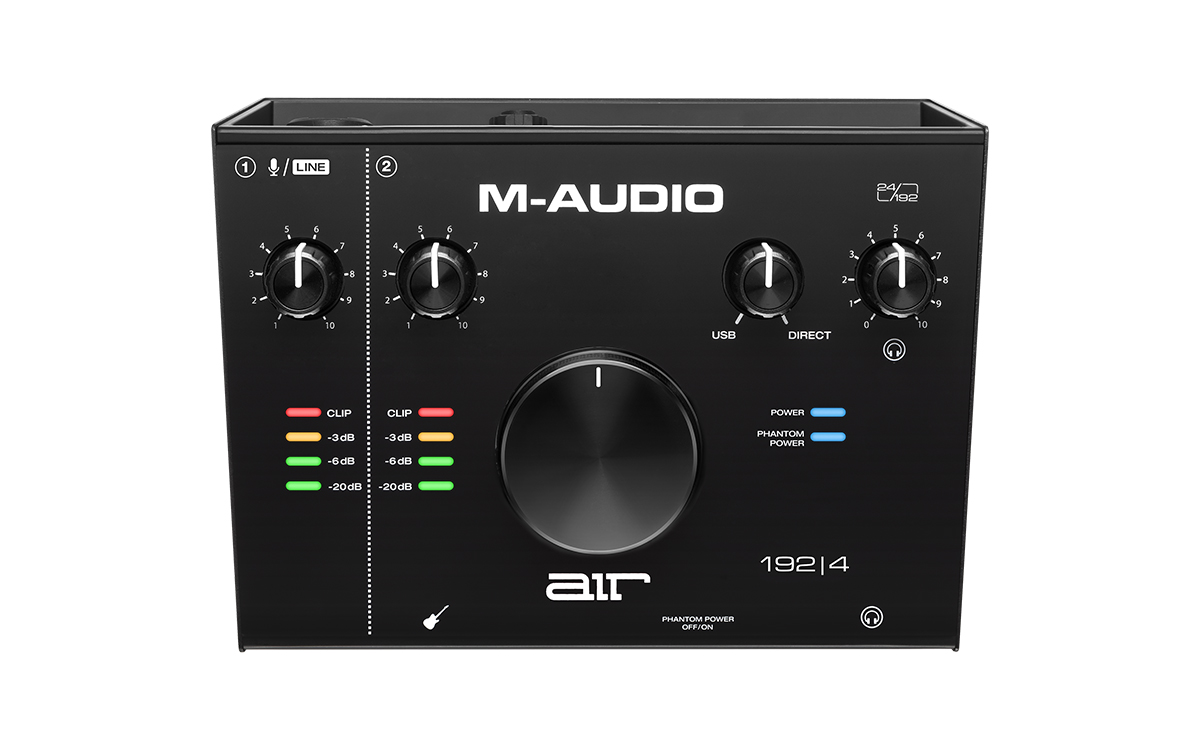

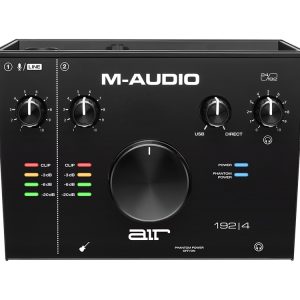

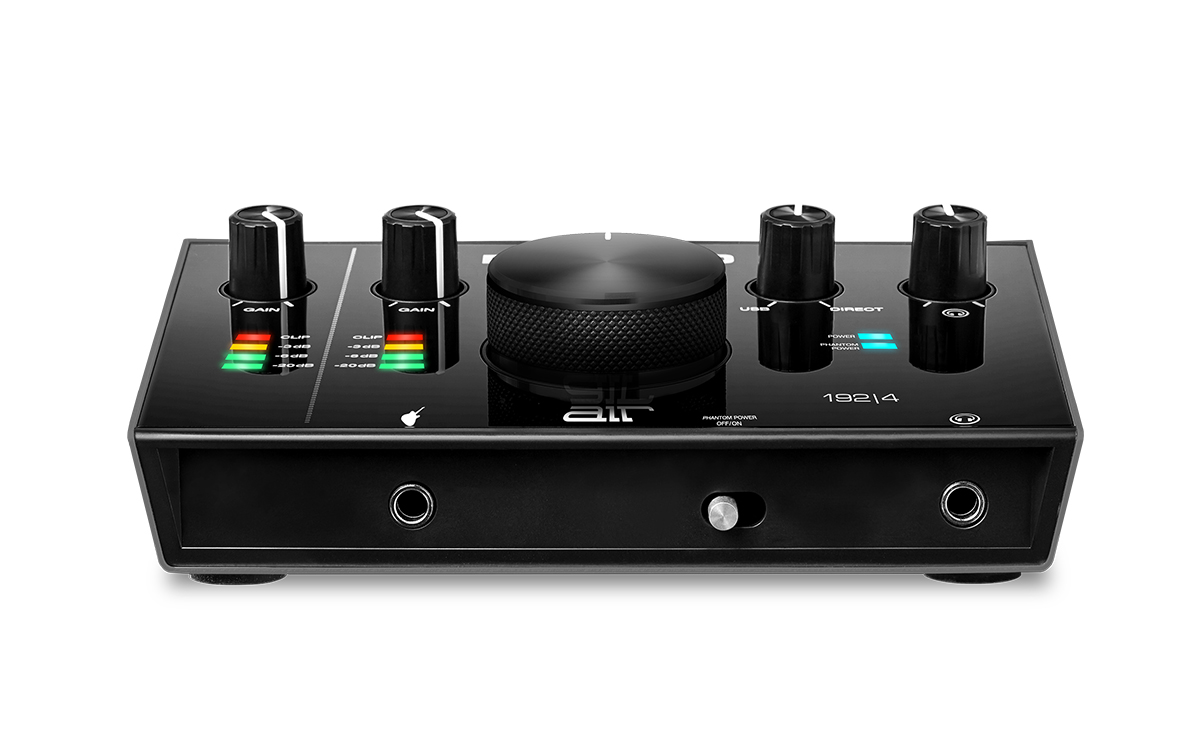

M-Audio Air 192|4 2 in 2 out USB Audio I/O with 1 Mic input
66.0 Inc Vat
“Key Features
24-bit/192kHz resolution for professional recording and monitoring
Hi-Speed USB circuitry gives you the fastest connection, with a class-leading round trip latency of only 2.59ms*
Transparent Crystal™ preamps and ultra-pristine A/D converters for unsurpassed audio recording quality
VU LED meters for dialing in the perfect level
XLR+¼” TRS combo input with dedicated signal circuit and (1) ¼” instrument input with dedicated signal circuit for the most accurate sound available
Stereo ¼” outs; ¼” headphone out with independent level control
Rugged metal chassis; large central control for easy volume adjustment
USB/Direct knob for balancing between the input signal and the computer signal
*Round trip latency is dependent on buffer settings, and computer hardware”
