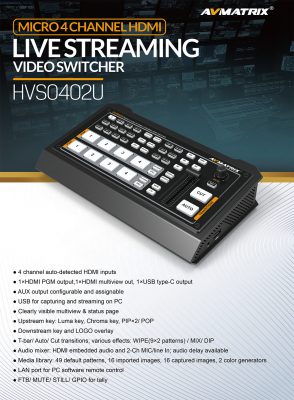

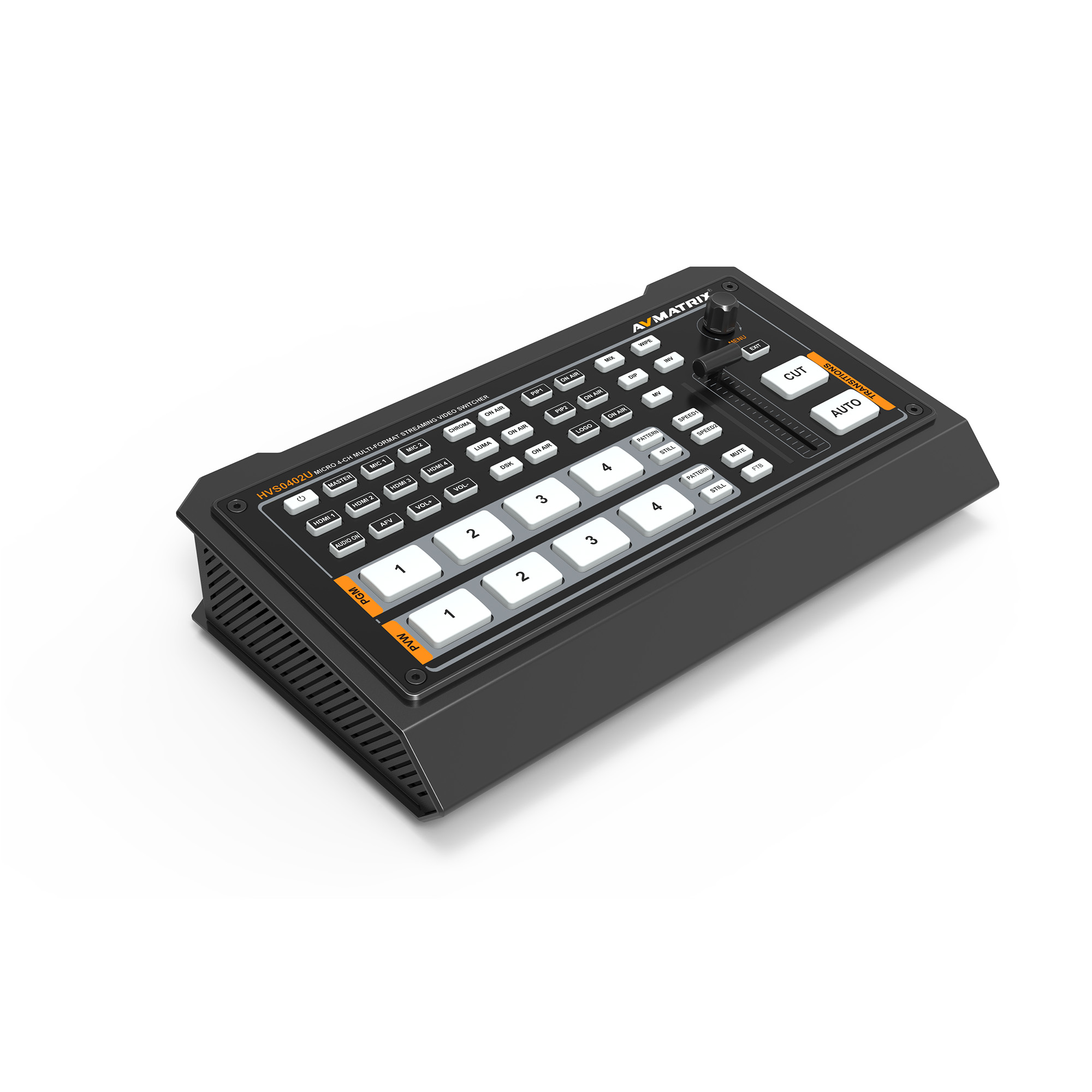

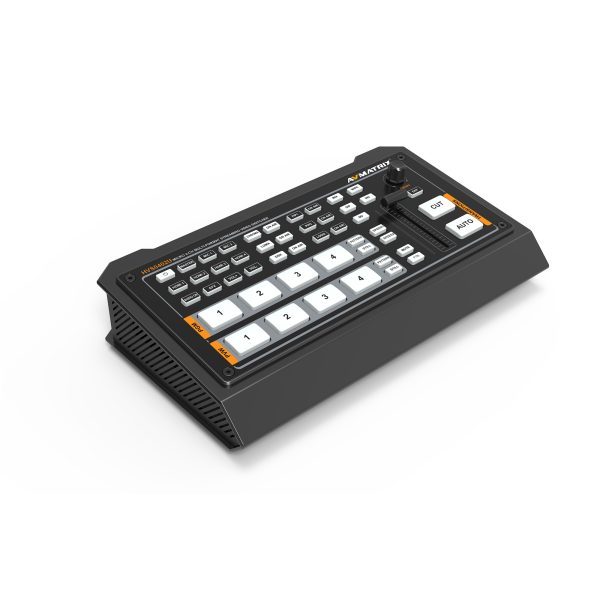

AVMATRIX HVS0402U MICRO 4 CHANNEL HDMI LIVE STREAMING VIDEO SWITCHER

.د.ب242.0 Inc Vat

  • 4 channel auto-detected HDMI inputs
  • 1×HDMI PGM output,1×HDMI multiview out, 1×USB type-C output
  • AUX output configurable and assignable

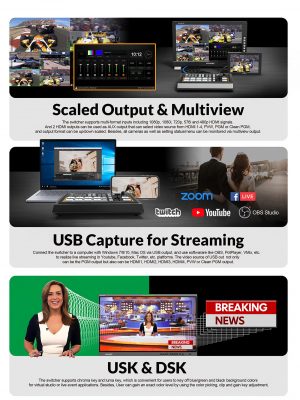

  • USB-C for capturing and streaming on PC
  • Clearly visible multiview & status page
  • Upstream key: Luma key, Chroma key, PIP×2/ POP
  • Downstream key and LOGO overlay

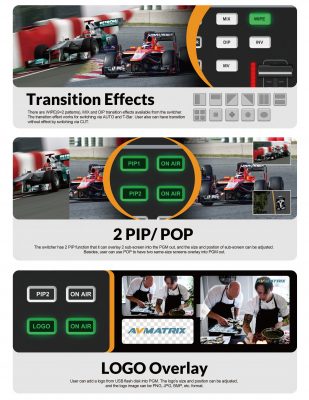

  • T-bar/ Auto/ Cut transitions; various effects: WIPE(9×2 patterns) / MIX/ DIP

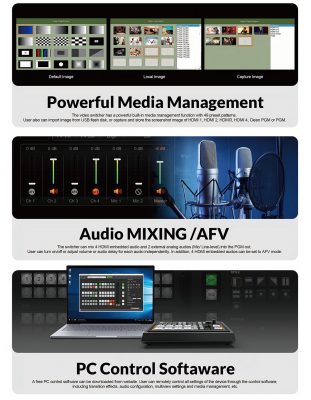

  • Audio mixer: HDMI embedded audio and 2-Ch MIC/ line In; audio delay available
  • Media library: 49 default patterns, 16 imported images, 16 captured images, 2 color generators
  • LAN port for PC software remote control
  • FTB/ MUTE/ STILL/ GPIO for tally
  • customer configuration import and export
